mbo::MboWinMsgHandler Class Reference

Windows message handler thread. More...

#include <MboThread.h>

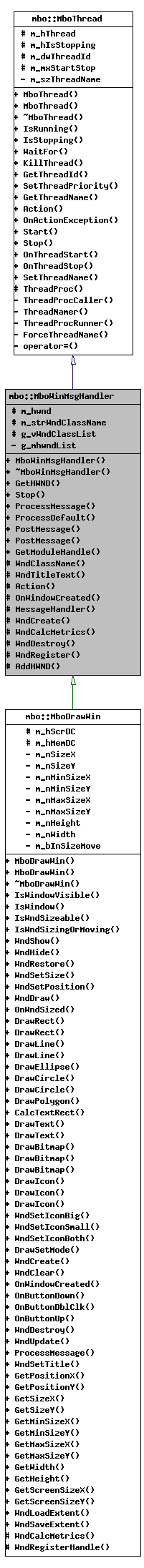

Inheritance diagram for mbo::MboWinMsgHandler:

[legend]

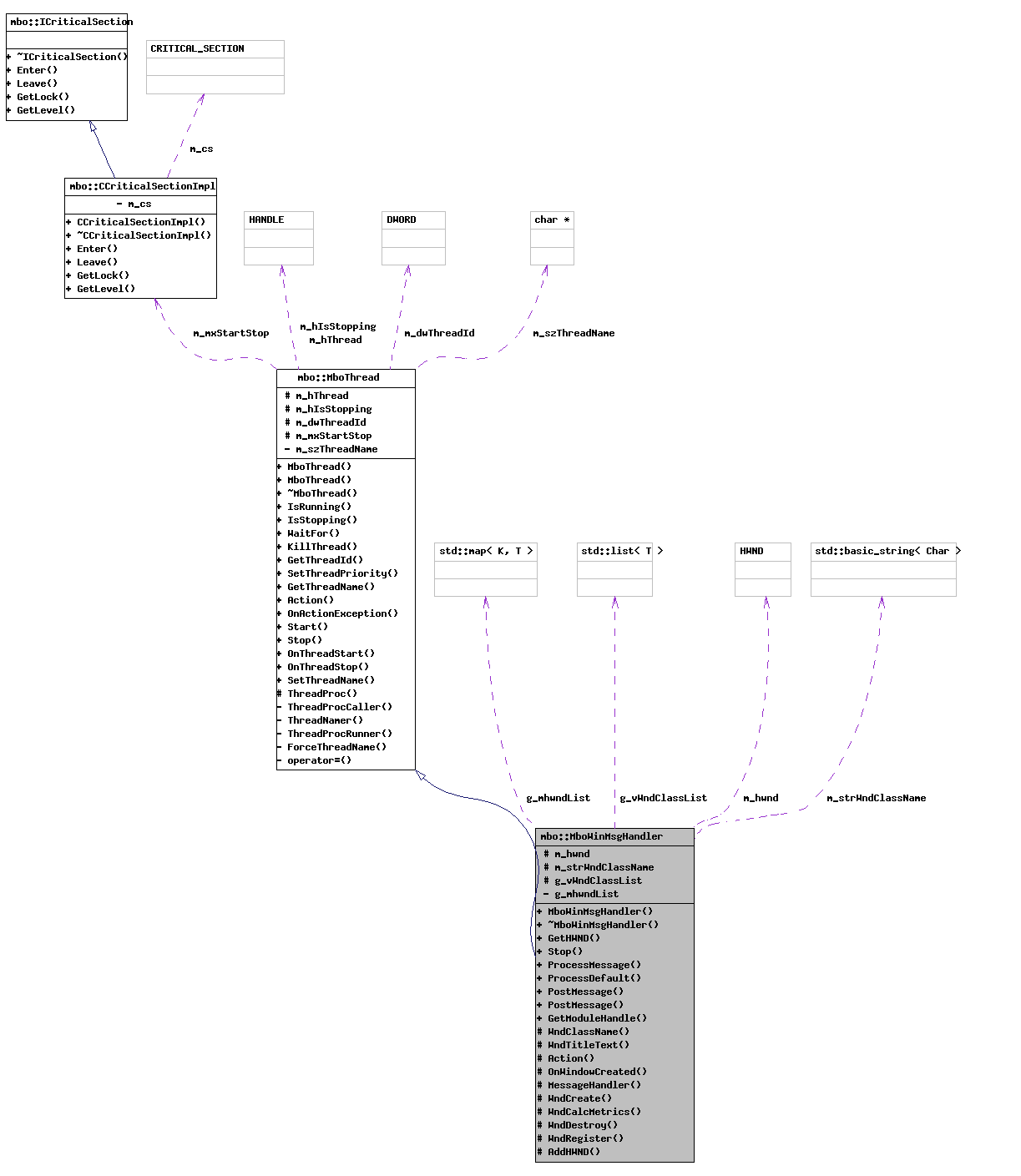

Collaboration diagram for mbo::MboWinMsgHandler:

[legend]

List of all members.

Public Member Functions
	MboWinMsgHandler (const MboString &strWndClassName="MboWinMsgHandler", bool bStart=true)
virtual	~MboWinMsgHandler ()
virtual HWND	GetHWND () const
virtual void	Stop ()
virtual LRESULT	ProcessMessage (HWND hwnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
virtual LRESULT	ProcessDefault (HWND hwnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
virtual bool	PostMessage (UINT uMsg, WPARAM wParam, LPARAM lParam)
virtual bool	PostMessage (HWND hwnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
virtual HINSTANCE	GetModuleHandle () const
Protected Member Functions
virtual const MboString &	WndClassName () const
virtual const MboString &	WndTitleText () const
virtual void	Action ()
virtual void	OnWindowCreated ()
virtual void	MessageHandler (MSG &msg)
virtual bool	WndCreate ()
virtual bool	WndCalcMetrics ()
virtual void	WndDestroy ()
virtual bool	WndRegister ()
void	AddHWND ()
Protected Attributes
HWND	m_hwnd
const MboString	m_strWndClassName
Static Protected Attributes
static WndClassList	g_vWndClassList
Friends
LRESULT CALLBACK	MboWndProc (HWND hwnd, UINT uMsg, WPARAM wParam, LPARAM lParam)

---

Detailed Description

Windows message handler thread.

This class implementns a windows message handling facility to be used when working in shell or other applications where no message handler and/or message loop is accessible.

When you need to work with visible windows you must register your own class by overriding WndRegister() and most likely WndCreate().

Definition at line 537 of file MboThread.h.

---

Constructor & Destructor Documentation

mbo::MboWinMsgHandler::MboWinMsgHandler	(	const MboString &	strWndClassName = "MboWinMsgHandler",
		bool	bStart = true
	)			[explicit]

The constructor will automatically start the message thread. However it has to wait a small amount of time before it can return.

If you need to need to define your own WndRegister() or WndCreate() methods in a derived class you must call the constructor with param bStart being false and directly call Start().

Parameters:

	strWndClassName	name of message handler
	bStart	create the class and window and start the message handler thread.

virtual mbo::MboWinMsgHandler::~MboWinMsgHandler

(

)

[virtual]

Destroy/Release all resources registered and/or created.

---

Member Function Documentation

virtual HWND mbo::MboWinMsgHandler::GetHWND

(

)

const [virtual]

Returns:

handle used internally (usefule for message passing).

virtual void mbo::MboWinMsgHandler::Stop

(

)

[virtual]

Generates an WM_DESTROY message for the message handler which triggers a call to the inherited Stop and hence stops the thread. However the method also calls inherited Stop() direct to force message loop termination on next message.

Reimplemented from mbo::MboThread.

virtual LRESULT mbo::MboWinMsgHandler::ProcessMessage	(	HWND	hwnd,
		UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam
	)			[virtual]

Overwrite this handler if you want to handle any message.

Note:

You should call ProcessDefault() from ProcessMessage() for any message not handled yourself.

Parameters:

	hwnd	Handle to the window procedure that received the message. This normally matches m_hwnd.
	uMsg	Specifies the message received.
	wParam	Specifies additional message information. The content of this parameter depends on the value of the Msg parameter.
	lParam	Specifies additional message information. The content of this parameter depends on the value of the Msg parameter.

Returns:

The return value is the result of the message processing and depends on the message.

Reimplemented in mbo::MboDrawWin.

virtual LRESULT mbo::MboWinMsgHandler::ProcessDefault	(	HWND	hwnd,
		UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam
	)			[virtual]

Handles default messages not handled by ProcessMessage.

Note:

You should call ProcessDefault() from ProcessMessage() for any message not handled yourself.

Parameters:

	hwnd	Handle to the window procedure that received the message. This normally matches m_hwnd.
	uMsg	Specifies the message received.
	wParam	Specifies additional message information. The content of this parameter depends on the value of the Msg parameter.
	lParam	Specifies additional message information. The content of this parameter depends on the value of the Msg parameter.

Returns:

The return value is the result of the message processing and depends on the message.

virtual bool mbo::MboWinMsgHandler::PostMessage	(	UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam
	)			[virtual]

Pass a message to the handler. Internally this method calls PostMessage with hwnd set to m_hwnd.

Parameters:

	uMsg	Specifies the message to be posted.
	wParam	Specifies additional message-specific information.
	lParam	Specifies additional message-specific information.

Returns:

If the function succeeds, the return value is true.

virtual bool mbo::MboWinMsgHandler::PostMessage	(	HWND	hwnd,
		UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam
	)			[virtual]

Pass a message to the handler.

Parameters:

	hwnd	Handle to the window whose window procedure is to receive the message. Two values have special meanings: Value Meaning HWND_BROADCAST The message is posted to all top-level windows in the system, including disabled or invisible unowned windows, overlapped windows, and pop-up windows. The message is not posted to child windows. NULL The function behaves like a call to PostThreadMessage with the dwThreadId parameter set to the identifier of the current thread.
	uMsg	Specifies the message to be posted.
	wParam	Specifies additional message-specific information.
	lParam	Specifies additional message-specific information.

Returns:

If the function succeeds, the return value is true.

virtual HINSTANCE mbo::MboWinMsgHandler::GetModuleHandle

(

)

const [virtual]

Returns:

instance of EXE or DLL, used with resources.

virtual const MboString& mbo::MboWinMsgHandler::WndClassName

(

)

const [protected, virtual]

Returns:

the (window) class name which is used to create the window. This name will be used in RegisterWin() and CreateWin().

If you need to overload this function you must ensure that the returned value is a const string which must not be freed by the caller. Also you need to set bStart parameter of the constructor to false.

virtual const MboString& mbo::MboWinMsgHandler::WndTitleText

(

)

const [protected, virtual]

Returns:

title of window (defaults to WndClassName())

virtual void mbo::MboWinMsgHandler::Action

(

)

[protected, virtual]

Message handler

Do this:

• Create an unvisible message window
• Handle its WinApi messages until stopped For every single message method MessageHandler is invoked.
• Close and destroy message window

Implements mbo::MboThread.

virtual void mbo::MboWinMsgHandler::OnWindowCreated

(

)

[protected, virtual]

Called after the window has been created by WndCreate(). This method may be overwritten in derived GUI classes to perform initial drawing.

Note:

You cannot use OnThreadStart() method to draw because it is called before the window has been created.

Reimplemented in mbo::MboDrawWin.

virtual void mbo::MboWinMsgHandler::MessageHandler

(

MSG &

msg

)

[protected, virtual]

Handle a message by first translating it and then dispatching it.

Parameters:

msg

Message to handle.

virtual bool mbo::MboWinMsgHandler::WndCreate

(

)

[protected, virtual]

Create an unvisible message window. Called during handler startup.

Reimplemented in mbo::MboDrawWin.

virtual bool mbo::MboWinMsgHandler::WndCalcMetrics

(

)

[protected, virtual]

Register the window and calculate its metrics in case of visible windows of derived classes.

Reimplemented in mbo::MboDrawWin.

virtual void mbo::MboWinMsgHandler::WndDestroy

(

)

[protected, virtual]

Destroy the message window.

Reimplemented in mbo::MboDrawWin.

virtual bool mbo::MboWinMsgHandler::WndRegister

(

)

[protected, virtual]

Register the class used to specify the internally used message handler.

void mbo::MboWinMsgHandler::AddHWND

(

)

[protected]

Add the instance with its identifying HWND to the list of registered windows.

Actually this does:

     g_mhwndList[m_hwnd] = this;

Note:

non virtual

---

Friends And Related Function Documentation

LRESULT CALLBACK MboWndProc	(	HWND	hwnd,
		UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam
	)			[friend]

---

Member Data Documentation

HWND mbo::MboWinMsgHandler::m_hwnd [protected]

Definition at line 709 of file MboThread.h.

const MboString mbo::MboWinMsgHandler::m_strWndClassName [protected]

window handle

Definition at line 711 of file MboThread.h.

WndClassList mbo::MboWinMsgHandler::g_vWndClassList [static, protected]

the window class name as returned by WndClassName()

Definition at line 713 of file MboThread.h.

---

The documentation for this class was generated from the following file:

• MboThread.h

---
