mbo::MboDrawWin Class Reference

A draw window independant from main application. More...

#include <MboDrawWin.h>

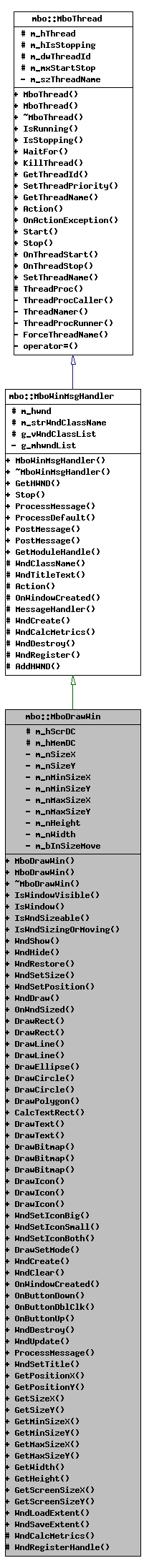

Inheritance diagram for mbo::MboDrawWin:

[legend]

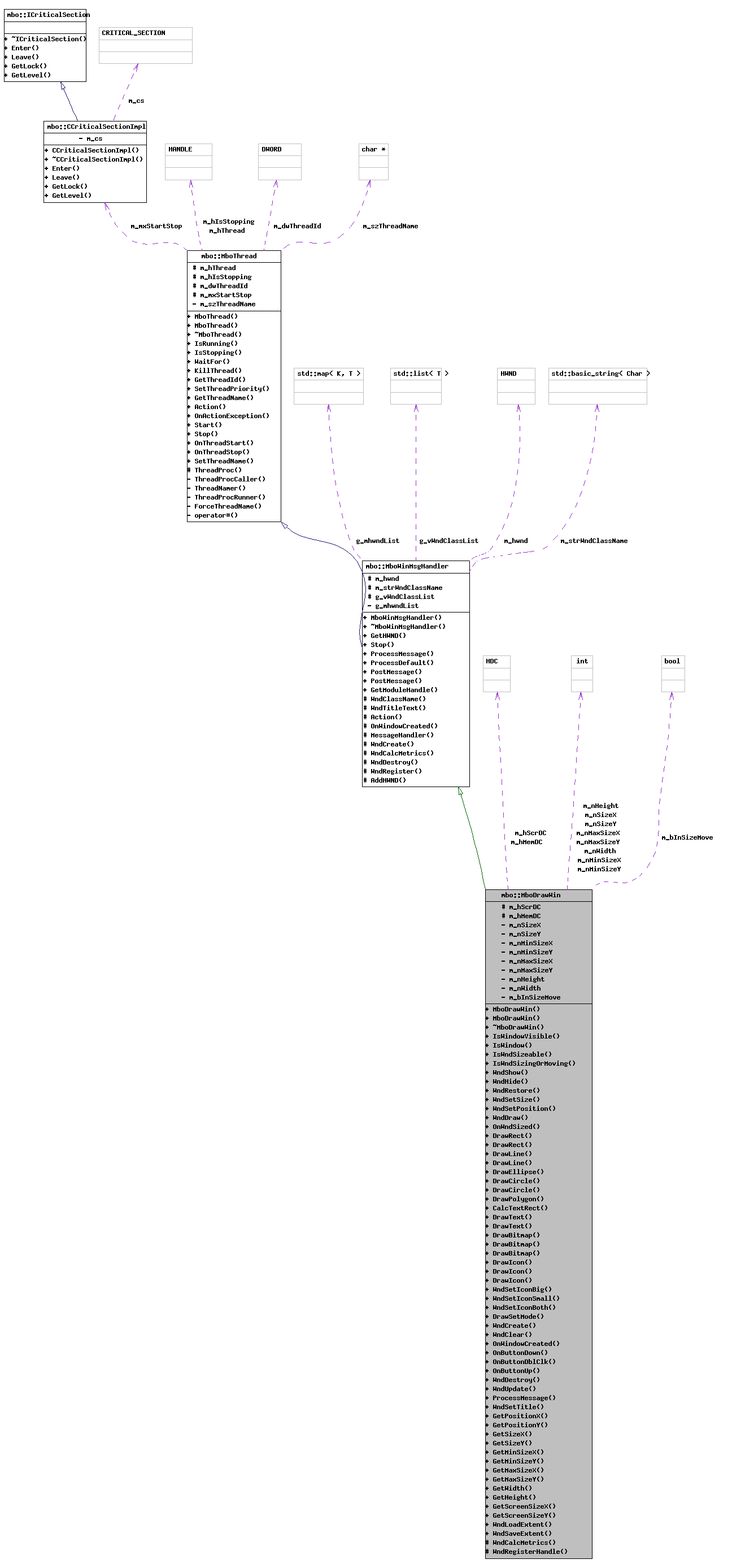

Collaboration diagram for mbo::MboDrawWin:

[legend]

List of all members.

Public Member Functions
	MboDrawWin (int nSizeX=400, int nSizeY=300, const MboString &strWndClassName="MboDrawWin", bool bStart=true)
	MboDrawWin (int nSizeX, int nSizeY, int nMinSizeX, int nMinSizeY, int nMaxSizeX, int nMaxSizeY, const MboString &strWndClassName="MboDrawWin", bool bStart=true)
virtual	~MboDrawWin ()
bool	IsWindowVisible () const
bool	IsWindow () const
bool	IsWndSizeable () const
bool	IsWndSizingOrMoving () const
virtual void	WndShow (bool bActive=true)
virtual void	WndHide ()
virtual void	WndRestore ()
virtual void	WndSetSize (int nSizeX, int nSizeY)
virtual void	WndSetPosition (int nPosX, int nPosY)
virtual void	WndDraw ()
virtual void	OnWndSized ()
virtual void	DrawRect (const RECT &rect, COLORREF colInner, COLORREF colOuter=RGB(0, 0, 0), DRAW_MODE enMode=DRAW_MODE_FILL)
virtual void	DrawRect (LONG nLeft, LONG nTop, LONG nRight, LONG nBottom, COLORREF colInner, COLORREF colOuter=RGB(0, 0, 0), DRAW_MODE enMode=DRAW_MODE_FILL)
virtual void	DrawLine (LONG nX1, LONG nY1, LONG nX2, LONG nY2, int nPenWidth, COLORREF colInner, DRAW_MODE enMode=DRAW_MODE_FILL, int fnPenStyle=PS_INSIDEFRAME)
virtual void	DrawLine (POINT pt1, POINT pt2, int nPenWidth, COLORREF colInner, DRAW_MODE enMode=DRAW_MODE_FILL, int fnPenStyle=PS_INSIDEFRAME)
virtual void	DrawEllipse (const RECT &rect, COLORREF colInner, COLORREF colOuter=RGB(0, 0, 0), DRAW_MODE enMode=DRAW_MODE_FILL)
virtual void	DrawCircle (const POINT &ptCenter, const LONG nRadius, COLORREF colInner, COLORREF colOuter=RGB(0, 0, 0), DRAW_MODE enMode=DRAW_MODE_FILL)
virtual void	DrawCircle (const LONG nCenterX, const LONG nCenterY, const LONG nRadius, COLORREF colInner, COLORREF colOuter=RGB(0, 0, 0), DRAW_MODE enMode=DRAW_MODE_FILL)
virtual void	DrawPolygon (const POINT *aptPoints, int nNumPoints, COLORREF colInner, COLORREF colOuter=RGB(0, 0, 0), DRAW_MODE enMode=DRAW_MODE_FILL)
virtual void	CalcTextRect (RECT &rect, const MboString &strText, UINT uFormat=0)
virtual void	DrawText (const RECT &rect, const MboString &strText, UINT uFormat=0, COLORREF colInner=RGB(0, 0, 0), COLORREF colOuter=RGB(255, 255, 255), DRAW_MODE enMode=DRAW_MODE_TRANSPARENT)
virtual void	DrawText (LONG nLeft, LONG nTop, LONG nRight, LONG nBottom, const MboString &strText, UINT uFormat=0, COLORREF colInner=RGB(0, 0, 0), COLORREF colOuter=RGB(255, 255, 255), DRAW_MODE enMode=DRAW_MODE_TRANSPARENT)
virtual bool	DrawBitmap (int nLeft, int nTop, HBITMAP hBitmap)
virtual bool	DrawBitmap (int nLeft, int nTop, const MboString &strResId)
virtual bool	DrawBitmap (int nLeft, int nTop, UINT nResId)
virtual bool	DrawIcon (int nLeft, int nTop, HICON hIcon)
virtual bool	DrawIcon (int nLeft, int nTop, const MboString &strResId)
virtual bool	DrawIcon (int nLeft, int nTop, UINT nResId)
virtual bool	WndSetIconBig (UINT nResId)
virtual bool	WndSetIconSmall (UINT nResId)
virtual bool	WndSetIconBoth (UINT nResId)
virtual void	DrawSetMode (HBRUSH &hBrush, HPEN &hPen, COLORREF colInner, COLORREF colOuter=RGB(0, 0, 0), DRAW_MODE enMode=DRAW_MODE_FILL, int nPenWidth=0, int fnPenStyle=PS_SOLID)
virtual bool	WndCreate ()
virtual void	WndClear ()
virtual void	OnWindowCreated ()
virtual void	OnButtonDown (UINT nFlags, int x, int y)
virtual void	OnButtonDblClk (UINT nFlags, int x, int y)
virtual void	OnButtonUp (UINT nFlags, int x, int y)
virtual void	WndDestroy ()
virtual void	WndUpdate ()
virtual LRESULT	ProcessMessage (HWND hwnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
virtual void	WndSetTitle (const MboString &strTitle)
int	GetPositionX () const
int	GetPositionY () const
int	GetSizeX () const
int	GetSizeY () const
int	GetMinSizeX () const
int	GetMinSizeY () const
int	GetMaxSizeX () const
int	GetMaxSizeY () const
int	GetWidth () const
int	GetHeight () const
int	GetScreenSizeX () const
int	GetScreenSizeY () const
virtual void	WndLoadExtent (const CIniData &cIniData, const MboString &strSection, bool bWriteDefault=false)
virtual void	WndSaveExtent (CIniData &cIniData, const MboString &strSection) const
Protected Member Functions
virtual bool	WndCalcMetrics ()
virtual void	WndRegisterHandle ()
Protected Attributes
HDC	m_hScrDC
HDC	m_hMemDC

---

Detailed Description

A draw window independant from main application.

The class creates a window and the message handler and connects them on intstance level. That is you don't have to worry about how to propagate 'slef' to the message handler ProcessMessage().

Actual drawing happens in a background buffer which should be copied to the screen by calling WndUpdate(). The standard message handler implementation does so for several system messages like window movement.

When drawing takes to much time it is a good idea to do that in a separate thread.

Definition at line 132 of file MboDrawWin.h.

---

Constructor & Destructor Documentation

mbo::MboDrawWin::MboDrawWin	(	int	nSizeX = 400,
		int	nSizeY = 300,
		const MboString &	strWndClassName = "MboDrawWin",
		bool	bStart = true
	)			[explicit]

Creates a window and all necessary resources (classes, handlers).

Parameters:

	nSizeX	outer width of window
	nSizeY	outer height of window
	strWndClassName	the name of the window class that will be returned by WndClassName() if not overwritten.
	bStart	whether to create window and start handler directly. If you plan to override window creation functions in a derived class this parameter must be set false.

Note:

When using this constructor the created window is not resizeable.

Warning:

There is a known problem with small windows. When the window widsth is smaller than the width needed to display any configured frame or system menu elements the client area gets the size as configured and a transparent area is used to fillup the real window area. The problem however is inherent to the WINAPI.

mbo::MboDrawWin::MboDrawWin	(	int	nSizeX,
		int	nSizeY,
		int	nMinSizeX,
		int	nMinSizeY,
		int	nMaxSizeX,
		int	nMaxSizeY,
		const MboString &	strWndClassName = "MboDrawWin",
		bool	bStart = true
	)

Creates a window and all necessary resources (classes, handlers).

Parameters:

	nSizeX	outer width of window
	nSizeY	outer height of window
	nMinSizeX	minimum allowed outer width of window
	nMinSizeY	minimum allowed outer height of window
	nMaxSizeX	maximum allowed outer width of window
	nMaxSizeY	maximum allowed outer height of window
	strWndClassName	the name of the window class that will be returned by WndClassName() if not overwritten.
	bStart	whether to create window and start handler directly. If you plan to override window creation functions in a derived class this parameter must be set false.

Note:

When using this constructor the created window is resizeable as long as MinSizeX / MaxSizeX or MinSizeY / MaxSizeY differ.

All Size values area automatically corrected. That is you have exchanged minimum and maximum values the constructor will change them back and if the Size value is smaller than the MinSize value the MinSizeValue will be used and finally if the Size value is greater than the MxSize value then the MaxSize value will be used.

Warning:

There is a known problem with small windows. When the window widsth is smaller than the width needed to display any configured frame or system menu elements the client area gets the size as configured and a transparent area is used to fillup the real window area. The problem however is inherent to the WINAPI.

virtual mbo::MboDrawWin::~MboDrawWin

(

)

[virtual]

Destruct instance and all allocated resources.

---

Member Function Documentation

bool mbo::MboDrawWin::IsWindowVisible

(

)

const

Returns:

whether window is visible.

bool mbo::MboDrawWin::IsWindow

(

)

const

Returns:

whether window is existing.

bool mbo::MboDrawWin::IsWndSizeable

(

)

const

Returns:

whether window is sizeable.

bool mbo::MboDrawWin::IsWndSizingOrMoving

(

)

const

Returns:

whether window is currently in move or size mode.

virtual void mbo::MboDrawWin::WndShow

(

bool

bActive = true

)

[virtual]

Show the window and optionally activate it.

Parameters:

bActive

whether to activate the window.

Note:

This does not restore the window. That is a minimized window remains minimized after this call.

See also:

WndRestore

virtual void mbo::MboDrawWin::WndHide

(

)

[virtual]

Hide the window .

virtual void mbo::MboDrawWin::WndRestore

(

)

[virtual]

Restore the window, does neither show nor activate it.

See also:

WndShow

virtual void mbo::MboDrawWin::WndSetSize	(	int	nSizeX,
		int	nSizeY
	)			[virtual]

Resize the window by specifying its outer size.

You can only change the size of the window within minimum and maximum values specified. To Check these you can use the following methods:

• GetMinSizeX()
• GetMinSizeY()
• GetMaxSizeX()
• GetMaxSizeY() Lower values are replaced by their minimum values and higher values are replaced by their maximum values.

Parameters:

	nSizeX	new width of window
	nSizeY	new height of window

virtual void mbo::MboDrawWin::WndSetPosition	(	int	nPosX,
		int	nPosY
	)			[virtual]

Move the window to the specifying coordinates.

Note:

This is ignored if not running (in _DEBUG mode it uses an assertion).

Parameters:

	nPosX	new X coordinate of window (top/right edge)
	nPosY	new Y coordinate of window (top/right edge)

virtual void mbo::MboDrawWin::WndDraw

(

)

[virtual]

The actual drawing routine which is only called upon window creation once. It calles WndUpdate() to show the new contents.

Derived classes should therfore override this method and do its actual drawing there and call WndUpdate() when finished. The other way to draw the window is to inherit this function as is and perform drawing in specialized methods that are controlled from outside this class. In that case those methods need to ensure WndUpdate() gets called to make the new contents visible.

virtual void mbo::MboDrawWin::OnWndSized

(

)

[virtual]

Called when the window has been resized. The default implementation simply calls WndDraw(). A derived class however might want to change internal information to be able to modify what can be shown with new window size.

virtual void mbo::MboDrawWin::DrawRect	(	const RECT &	rect,
		COLORREF	colInner,
		COLORREF	colOuter = RGB(0, 0, 0),
		DRAW_MODE	enMode = DRAW_MODE_FILL
	)			[virtual]

Draws a filled rectangle with whole rect included.

Parameters:

	rect	display bounds of rectangle to draw
	colInner	inner color (area)
	colOuter	outer color (border)
	enMode	draw mode to be used

Note:

GDI correction for bottom/right is done automatically.

virtual void mbo::MboDrawWin::DrawRect	(	LONG	nLeft,
		LONG	nTop,
		LONG	nRight,
		LONG	nBottom,
		COLORREF	colInner,
		COLORREF	colOuter = RGB(0, 0, 0),
		DRAW_MODE	enMode = DRAW_MODE_FILL
	)			[virtual]

Draws a filled rectangle with whole rect included.

Parameters:

	nLeft	rect coordinate
	nTop	rect coordinate
	nRight	rect coordinate
	nBottom	rect coordinate
	colInner	inner color (area)
	colOuter	outer color (border)
	enMode	draw mode to be used

Note:

GDI correction for bottom/right is done automatically.

virtual void mbo::MboDrawWin::DrawLine	(	LONG	nX1,
		LONG	nY1,
		LONG	nX2,
		LONG	nY2,
		int	nPenWidth,
		COLORREF	colInner,
		DRAW_MODE	enMode = DRAW_MODE_FILL,
		int	fnPenStyle = PS_INSIDEFRAME
	)			[virtual]

Draws a line.

Parameters:

	nX1	start coordinate X
	nY1	start coordinate Y
	nX2	end coordinate X
	nY2	end coordinate Y
	nPenWidth	width of pen in pixels
	colInner	inner color (area)
	enMode	draw mode to be used
	fnPenStyle	style of pen (PS_xxx)

virtual void mbo::MboDrawWin::DrawLine	(	POINT	pt1,
		POINT	pt2,
		int	nPenWidth,
		COLORREF	colInner,
		DRAW_MODE	enMode = DRAW_MODE_FILL,
		int	fnPenStyle = PS_INSIDEFRAME
	)			[virtual]

Draws a line.

Parameters:

	pt1	start coordinates
	pt2	end coordinates
	nPenWidth	width of pen in pixels
	colInner	inner color (area)
	enMode	draw mode to be used
	fnPenStyle	style of pen (PS_xxx)

virtual void mbo::MboDrawWin::DrawEllipse	(	const RECT &	rect,
		COLORREF	colInner,
		COLORREF	colOuter = RGB(0, 0, 0),
		DRAW_MODE	enMode = DRAW_MODE_FILL
	)			[virtual]

Draws a filled ellipse within the given rectangular boundaries.

Parameters:

	rect	display bounds of ellipse to draw
	colInner	inner color (area)
	colOuter	outer color (border)
	enMode	draw mode to be used

Note:

GDI correction for bottom/right is done automatically.

virtual void mbo::MboDrawWin::DrawCircle	(	const POINT &	ptCenter,
		const LONG	nRadius,
		COLORREF	colInner,
		COLORREF	colOuter = RGB(0, 0, 0),
		DRAW_MODE	enMode = DRAW_MODE_FILL
	)			[virtual]

Draws a filled circle at given center with given radius.

Parameters:

	ptCenter	pixel coordinates for circle center
	nRadius	radius of circle in pixel
	colInner	inner color (area)
	colOuter	outer color (border)
	enMode	draw mode to be used

virtual void mbo::MboDrawWin::DrawCircle	(	const LONG	nCenterX,
		const LONG	nCenterY,
		const LONG	nRadius,
		COLORREF	colInner,
		COLORREF	colOuter = RGB(0, 0, 0),
		DRAW_MODE	enMode = DRAW_MODE_FILL
	)			[virtual]

Draws a filled circle at given center with given radius.

Parameters:

	nCenterX	X coordinates for circle center
	nCenterY	Y coordinates for circle center
	nRadius	radius of circle in pixel
	colInner	inner color (area)
	colOuter	outer color (border)
	enMode	draw mode to be used

virtual void mbo::MboDrawWin::DrawPolygon	(	const POINT *	aptPoints,
		int	nNumPoints,
		COLORREF	colInner,
		COLORREF	colOuter = RGB(0, 0, 0),
		DRAW_MODE	enMode = DRAW_MODE_FILL
	)			[virtual]

Draws a filled polygon just like DrawRect draws a rectangle.

Parameters:

	aptPoints	array of points to connect by a line. If areas are spawned then those will be filled.
	nNumPoints	number of points in array
	colInner	inner color (area)
	colOuter	outer color (border)
	enMode	draw mode to be used

virtual void mbo::MboDrawWin::CalcTextRect	(	RECT &	rect,
		const MboString &	strText,
		UINT	uFormat = 0
	)			[virtual]

Calculates rectangle to display a text.

Return values:

rect

display bounds for text box which are updated to be able to hold the complete text.

Parameters:

	strText	text to display.
	uFormat	text formatting options (like DT_LEFT, DT_CENTER, DT_RIGHT). This one will be extended by DT_CALCRECT.

virtual void mbo::MboDrawWin::DrawText	(	const RECT &	rect,
		const MboString &	strText,
		UINT	uFormat = 0,
		COLORREF	colInner = RGB(0, 0, 0),
		COLORREF	colOuter = RGB(255, 255, 255),
		DRAW_MODE	enMode = DRAW_MODE_TRANSPARENT
	)			[virtual]

Draws text filled with color cInner at position specified by rect.

Parameters:

	rect	display bounds for text box
	strText	text to display
	uFormat	text formatting options (like DT_LEFT, DT_CENTER, DT_RIGHT)
	colInner	inner color (area)
	colOuter	outer color (border)
	enMode	draw mode to be used

virtual void mbo::MboDrawWin::DrawText	(	LONG	nLeft,
		LONG	nTop,
		LONG	nRight,
		LONG	nBottom,
		const MboString &	strText,
		UINT	uFormat = 0,
		COLORREF	colInner = RGB(0, 0, 0),
		COLORREF	colOuter = RGB(255, 255, 255),
		DRAW_MODE	enMode = DRAW_MODE_TRANSPARENT
	)			[virtual]

Draws text filled with color cInner at position specified by area.

Parameters:

	nLeft	rect coordinate
	nTop	rect coordinate
	nRight	rect coordinate
	nBottom	rect coordinate
	strText	text to display
	uFormat	text formatting options (like DT_LEFT, DT_CENTER, DT_RIGHT)
	colInner	inner color (area)
	colOuter	outer color (border)
	enMode	draw mode to be used

virtual bool mbo::MboDrawWin::DrawBitmap	(	int	nLeft,
		int	nTop,
		HBITMAP	hBitmap
	)			[virtual]

Draws a bitmap

Parameters:

	nLeft	x-coordinate of upper-left corner
	nTop	y-coordinate of upper-left corner
	hBitmap	handle to bitmap to draw

Returns:

whether bitmap could be loaded

virtual bool mbo::MboDrawWin::DrawBitmap	(	int	nLeft,
		int	nTop,
		const MboString &	strResId
	)			[virtual]

Draws a bitmap

Parameters:

	nLeft	x-coordinate of upper-left corner
	nTop	y-coordinate of upper-left corner
	strResId	ressource id name of bitmap

Returns:

whether bitmap could be loaded

virtual bool mbo::MboDrawWin::DrawBitmap	(	int	nLeft,
		int	nTop,
		UINT	nResId
	)			[virtual]

Draws a bitmap

Parameters:

	nLeft	x-coordinate of upper-left corner
	nTop	y-coordinate of upper-left corner
	nResId	ressource id of bitmap

Returns:

whether bitmap could be loaded

virtual bool mbo::MboDrawWin::DrawIcon	(	int	nLeft,
		int	nTop,
		HICON	hIcon
	)			[virtual]

Draws an icon

Parameters:

	nLeft	x-coordinate of upper-left corner
	nTop	y-coordinate of upper-left corner
	hIcon	handle to icon to draw

Returns:

whether icon could be loaded

virtual bool mbo::MboDrawWin::DrawIcon	(	int	nLeft,
		int	nTop,
		const MboString &	strResId
	)			[virtual]

Loads an icon and draws it

Parameters:

	nLeft	x-coordinates of upper-left corner
	nTop	y-coordinates of upper-left corner
	strResId	ressource id name of icon

Returns:

whether icon could be loaded

virtual bool mbo::MboDrawWin::DrawIcon	(	int	nLeft,
		int	nTop,
		UINT	nResId
	)			[virtual]

Loads an icon and draws it

Parameters:

	nLeft	x-coordinates of upper-left corner
	nTop	y-coordinates of upper-left corner
	nResId	ressource id of icon

Returns:

whether icon could be loaded

virtual bool mbo::MboDrawWin::WndSetIconBig

(

UINT

nResId

)

[virtual]

Set the big (32x32) application icon.

Parameters:

nResId

ressource id of icon

Returns:

whether icon could be loaded and message was send.

virtual bool mbo::MboDrawWin::WndSetIconSmall

(

UINT

nResId

)

[virtual]

Set the small (16x16) application icon.

Parameters:

nResId

ressource id of icon

Returns:

whether icon could be loaded and message was send.

virtual bool mbo::MboDrawWin::WndSetIconBoth

(

UINT

nResId

)

[virtual]

Set the both application icons.

This method calls WndSetIconBig() and WndSetIconSmall().

Parameters:

nResId

ressource id of icon

Returns:

whether icon could be loaded and message was send.

Note:

The icon should have both a small (16x16) and a big (32x32) image.

virtual void mbo::MboDrawWin::DrawSetMode	(	HBRUSH &	hBrush,
		HPEN &	hPen,
		COLORREF	colInner,
		COLORREF	colOuter = RGB(0, 0, 0),
		DRAW_MODE	enMode = DRAW_MODE_FILL,
		int	nPenWidth = 0,
		int	fnPenStyle = PS_SOLID
	)			[virtual]

Select the actual draw mode. The method returns brush and pen which must be deleted by the callee. Normally this is done only internally from within any of the draw methods.

Return values:

	hBrush	brush to paint with
	hPen	pen to paint with

Parameters:

	colInner	inner color (area)
	colOuter	outer color (border)
	enMode	draw mode to be used
	nPenWidth	width of pen in pixels
	fnPenStyle	style of pen (PS_xxx)

virtual bool mbo::MboDrawWin::WndCreate

(

)

[virtual]

Creates the GUI Window

This function will be called from the same thread that runs the message loop. The default implementation does neither show nor activate the empty window. However the callback OnWindowCreated() gets executed directly after this function returns and right before the message loop starts and shall be used to show and/or activate the window.

Returns:

whether or not window could be created.

Note:

This method does neither show nor activate the window. That is job is done in the default implementation of OnWindowCreated().

If this function returns false then the calling thread will terminate by a handled runtime_error.

Reimplemented from mbo::MboWinMsgHandler.

virtual void mbo::MboDrawWin::WndClear

(

)

[virtual]

White fill the client area. This function is normally only called from the default OnWindoCreated() callback.

virtual void mbo::MboDrawWin::OnWindowCreated

(

)

[virtual]

Used to initialized the window (first drawing).

This method may of course be overwritten to perform tasks like calling WndSetTitle() or WndSetIcon(). The default implementation simply calls WndClear() when this function gets invoked and then shows and activates it.

Note:

If you override this method you must ensure that you active and show the window because otherwise you wouldn't be able to use it.

You cannot use OnThreadStart() callback to draw because it is called before the window has been created.

Reimplemented from mbo::MboWinMsgHandler.

virtual void mbo::MboDrawWin::OnButtonDown	(	UINT	nFlags,
		int	x,
		int	y
	)			[virtual]

Callback called when a mouse button is pressed.

Parameters:

	nFlags	Any combination of: MK_CONTROL Set if the ctrl key is down. MK_LBUTTON Set if the left mouse button was active. MK_MBUTTON Set if the middle mouse button was active. MK_RBUTTON Set if the right mouse button was active. MK_SHIFT Set if the shift key is down.
	x	x position of mouse
	y	y position of mouse

Note:

x and y are relative to the upper-left corner of the client area.

virtual void mbo::MboDrawWin::OnButtonDblClk	(	UINT	nFlags,
		int	x,
		int	y
	)			[virtual]

Callback called when a mouse button is double clicked.

Parameters:

	nFlags	Any combination of: MK_CONTROL Set if the ctrl key is down. MK_LBUTTON Set if the left mouse button was active. MK_MBUTTON Set if the middle mouse button was active. MK_RBUTTON Set if the right mouse button was active. MK_SHIFT Set if the shift key is down.
	x	x position of mouse
	y	y position of mouse

Note:

x and y are relative to the upper-left corner of the client area.

virtual void mbo::MboDrawWin::OnButtonUp	(	UINT	nFlags,
		int	x,
		int	y
	)			[virtual]

Callback called when a mouse button is release (up after pressed).

Parameters:

	nFlags	Any combination of: MK_CONTROL Set if the ctrl key is down. MK_LBUTTON Set if the left mouse button was active. MK_MBUTTON Set if the middle mouse button was active. MK_RBUTTON Set if the right mouse button was active. MK_SHIFT Set if the shift key is down.
	x	x position of mouse
	y	y position of mouse

Note:

x and y are relative to the upper-left corner of the client area.

virtual void mbo::MboDrawWin::WndDestroy

(

)

[virtual]

Destroys the GUI Window

Reimplemented from mbo::MboWinMsgHandler.

virtual void mbo::MboDrawWin::WndUpdate

(

)

[virtual]

Copy background drawing buffer to screen.

virtual LRESULT mbo::MboDrawWin::ProcessMessage	(	HWND	hwnd,
		UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam
	)			[virtual]

Overwrite this handler if you want to handle any message.

Note:

You should call ProcessDefault() from ProcessMessage() for any message not handled yourself.

Parameters:

	hwnd	Handle to the window procedure that received the message. This normally matches m_hwnd.
	uMsg	Specifies the message received.
	wParam	Specifies additional message information. The content of this parameter depends on the value of the Msg parameter.
	lParam	Specifies additional message information. The content of this parameter depends on the value of the Msg parameter.

Returns:

The return value is the result of the message processing and depends on the message.

Reimplemented from mbo::MboWinMsgHandler.

virtual void mbo::MboDrawWin::WndSetTitle

(

const MboString &

strTitle

)

[virtual]

Set title of window.

Parameters:

strTitle

new window title

int mbo::MboDrawWin::GetPositionX

(

)

const

Returns:

X position of window (if running else 0)

int mbo::MboDrawWin::GetPositionY

(

)

const

Returns:

Y position of window (if running else 0)

int mbo::MboDrawWin::GetSizeX

(

)

const

Returns:

current window width

int mbo::MboDrawWin::GetSizeY

(

)

const

Returns:

current window height

int mbo::MboDrawWin::GetMinSizeX

(

)

const

Returns:

minimum window width

int mbo::MboDrawWin::GetMinSizeY

(

)

const

Returns:

minimum window height

int mbo::MboDrawWin::GetMaxSizeX

(

)

const

Returns:

maximum window width

int mbo::MboDrawWin::GetMaxSizeY

(

)

const

Returns:

maximum window height

int mbo::MboDrawWin::GetWidth

(

)

const

Returns:

width of client area

int mbo::MboDrawWin::GetHeight

(

)

const

Returns:

height of client area

int mbo::MboDrawWin::GetScreenSizeX

(

)

const

Returns:

horizontal size of screen in pixels

int mbo::MboDrawWin::GetScreenSizeY

(

)

const

Returns:

vertical size of screen in pixels

virtual void mbo::MboDrawWin::WndLoadExtent	(	const CIniData &	cIniData,
		const MboString &	strSection,
		bool	bWriteDefault = false
	)			[virtual]

Load window position and size from ini file.

Parameters:

	cIniData	Ini file to use
	strSection	Section to use
	bWriteDefault	Whether to write the keys if not present already

Note:

This function uses the following keys: WndPosX, WndPosY, WndSizeX, WndSizeY.

This works only when running.

virtual void mbo::MboDrawWin::WndSaveExtent	(	CIniData &	cIniData,
		const MboString &	strSection
	)			const [virtual]

Save window position and size to ini file.

Parameters:

	cIniData	Ini file to use
	strSection	Section to use

Note:

This function uses the following keys: WndPosX, WndPosY, WndSizeX, WndSizeY.

This works only when running.

virtual bool mbo::MboDrawWin::WndCalcMetrics

(

)

[protected, virtual]

Register the window and calculate its metrics.

Reimplemented from mbo::MboWinMsgHandler.

virtual void mbo::MboDrawWin::WndRegisterHandle

(

)

[protected, virtual]

Called from WndCreate() or WndCalcMetrics() to actually register the window handle and create the Screen DC. This function does not do anything if either the handle is not set or the screen DC handle was created already.

---

Member Data Documentation

HDC mbo::MboDrawWin::m_hScrDC [protected]

Handle to Device Context of window

Definition at line 795 of file MboDrawWin.h.

HDC mbo::MboDrawWin::m_hMemDC [protected]

Handle to Device Context of background buffer

Definition at line 796 of file MboDrawWin.h.

---

The documentation for this class was generated from the following file:

• MboDrawWin.h

---
