mbo::CLockMulti Class Reference

Multi-Lock implementation. More...

#include <MboSynch.h>

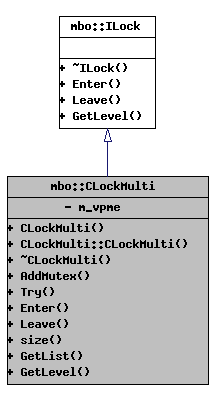

Inheritance diagram for mbo::CLockMulti:

[legend]

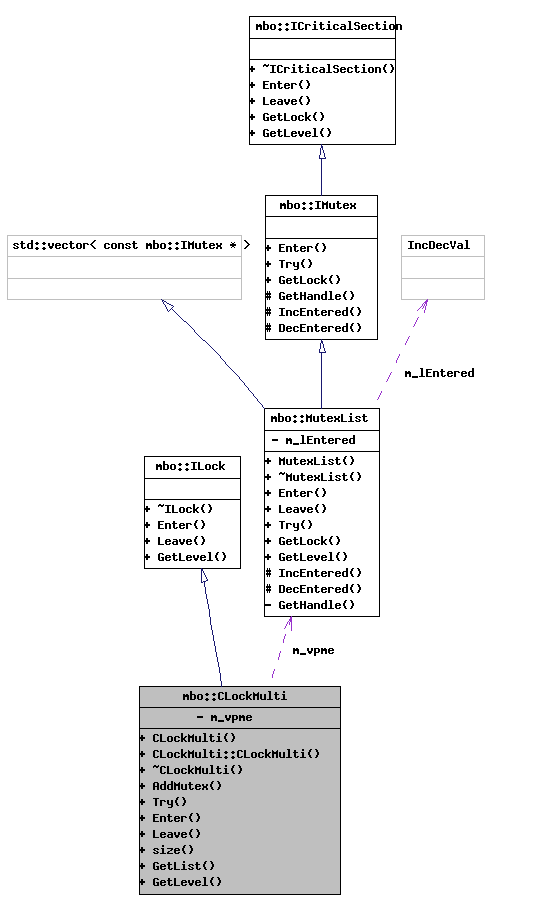

Collaboration diagram for mbo::CLockMulti:

[legend]

List of all members.

Public Member Functions
	CLockMulti (const IMutex *pmx1=NULL, const IMutex *pmx2=NULL, const IMutex *pmx3=NULL, const IMutex *pmx4=NULL, const IMutex *pmx5=NULL)
	CLockMulti::CLockMulti (const CLockMulti &lx)
virtual	~CLockMulti ()
virtual void	AddMutex (const IMutex *pmx) const
virtual bool	Try (DWORD nMilliseconds=0) const
virtual void	Enter () const
virtual void	Leave () const
virtual size_t	size () const
virtual const MutexList &	GetList () const
virtual unsigned long	GetLevel () const

---

Detailed Description

Multi-Lock implementation.

This Lock does not call Enter() upon creation or Leave() in destruction. This is must be done in the objects accepted by the constructor.

Note:

This class is distributed under the following license GNU Lesser General Public License, version 2.1.

Definition at line 1177 of file MboSynch.h.

---

Constructor & Destructor Documentation

mbo::CLockMulti::CLockMulti	(	const IMutex *	pmx1 = NULL,
		const IMutex *	pmx2 = NULL,
		const IMutex *	pmx3 = NULL,
		const IMutex *	pmx4 = NULL,
		const IMutex *	pmx5 = NULL
	)			[explicit]

constructor that takes up to 5 IMutex

The IMutex parameters must either be NULL or an instance from any class that implements the IMutex interface.

Parameters:

pmx1	first optional mutex
pmx2	second optional mutex
pmx3	third optional mutex
pmx4	forth optional mutex
pmx5	fith optional mutex

virtual mbo::CLockMulti::~CLockMulti

(

)

[virtual]

destructor

---

Member Function Documentation

mbo::CLockMulti::CLockMulti::CLockMulti

(

const CLockMulti &

lx

)

[explicit]

Copy constructor

Ensure the lock is entered since the destructor will call Leave().

Parameters:

lx	CLockMulti to copy from

virtual void mbo::CLockMulti::AddMutex

(

const IMutex *

pmx

)

const [virtual]

Add a single IMutex

Parameters:

pmx	Add a mutex to the list

virtual bool mbo::CLockMulti::Try

(

DWORD

nMilliseconds = 0

)

const [virtual]

Try to enter the Lock.

Parameters:

nMilliseconds

time in milliseconds to try to enter

Returns:

Whteher or not the Lock was entered

virtual void mbo::CLockMulti::Enter

(

)

const [virtual]

Enter the Lock

Implements mbo::ILock.

virtual void mbo::CLockMulti::Leave

(

)

const [virtual]

Leave the Lock

Implements mbo::ILock.

virtual size_t mbo::CLockMulti::size

(

)

const [virtual]

Number of IMutex elements in Lock

virtual const MutexList& mbo::CLockMulti::GetList

(

)

const [virtual]

Reference to internal MutexList (used by CLock)

virtual unsigned long mbo::CLockMulti::GetLevel

(

)

const [virtual]

Returns:

Number of times CriticalSection/Mutex is entered

Note:

This is only valie when the CriticalSection/Mutex is owned by the current thread.

This may not be correctly available in which case 1 is returned to signal Enter state.

Implements mbo::ILock.

---

The documentation for this class was generated from the following file:

• MboSynch.h

---
