mbo::CLock Class Reference

#include <MboSynch.h>

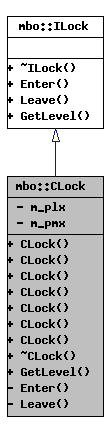

Inheritance diagram for mbo::CLock:

[legend]

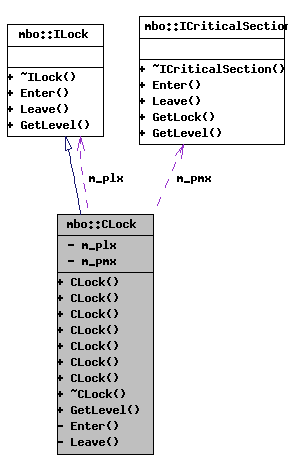

Collaboration diagram for mbo::CLock:

[legend]

List of all members.

Public Member Functions
	CLock (const ICriticalSection *pmx)
	CLock (const ILock *plx)
	CLock (const CLockSingle &lx)
	CLock (const CLockMulti &lx)
	CLock (const CLockFake &lx)
	CLock (const CLock &lx)
	CLock (const IMutex *pmx1, const IMutex *pmx2=NULL, const IMutex *pmx3=NULL, const IMutex *pmx4=NULL, const IMutex *pmx5=NULL)
virtual	~CLock ()
virtual unsigned long	GetLevel () const
Friends
class	CUnlock

---

Detailed Description

Definition at line 695 of file MboSynch.h.

---

Constructor & Destructor Documentation

mbo::CLock::CLock

(

const ICriticalSection *

pmx

)

[inline, explicit]

constructor that takes a single Critical Section

Definition at line 702 of file MboSynch.h.

        : m_plx(NULL)
        , m_pmx(pmx)
    {
        assert(m_pmx);
        m_pmx->Enter();
    }

mbo::CLock::CLock

(

const ILock *

plx

)

[explicit]

constructor (from any ILock pointer)

Parameters:

plx

pointer to Lock to use

mbo::CLock::CLock

(

const CLockSingle &

lx

)

[inline]

constructor (using a reference to a SingleLock)

Parameters:

lx

SingleLock to use

Definition at line 720 of file MboSynch.h.

        : m_plx(NULL)
        , m_pmx(lx.m_pmx) // must be set
    {
        m_pmx->Enter();
    }

mbo::CLock::CLock

(

const CLockMulti &

lx

)

constructor (using a reference to a MultiLock)

Parameters:

lx

MultiLock to use

mbo::CLock::CLock

(

const CLockFake &

lx

)

constructor (using a reference to a CLockFake)

Parameters:

lx

MultiLock to use

mbo::CLock::CLock

(

const CLock &

lx

)

constructor is necessary here since we dynamically allocate to m_plx

mbo::CLock::CLock	(	const IMutex *	pmx1,
		const IMutex *	pmx2 = NULL,
		const IMutex *	pmx3 = NULL,
		const IMutex *	pmx4 = NULL,
		const IMutex *	pmx5 = NULL
	)			[explicit]

constructor that takes up to 5 IMutex

Parameters:

pmx1	first mutex
pmx2	second optional mutex
pmx3	third optional mutex
pmx4	forth optional mutex
pmx5	fith optional mutex

virtual mbo::CLock::~CLock

(

)

[virtual]

the destructor ensures Leave() is called

---

Member Function Documentation

virtual unsigned long mbo::CLock::GetLevel

(

)

const [virtual]

Returns:

Number of times CriticalSection/Mutex is entered

Note:

This is only valie when the CriticalSection/Mutex is owned by the current thread.

This may not be correctly available in which case 1 is returned to signal Enter state.

Implements mbo::ILock.

---

Friends And Related Function Documentation

friend class CUnlock [friend]

Definition at line 697 of file MboSynch.h.

---

The documentation for this class was generated from the following file:

• MboSynch.h

---
