mbo::CEventImpl Class Reference

Event implementation. More...

#include <MboSynch.h>

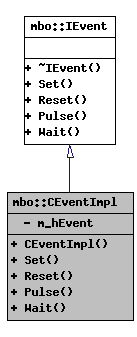

Inheritance diagram for mbo::CEventImpl:

[legend]

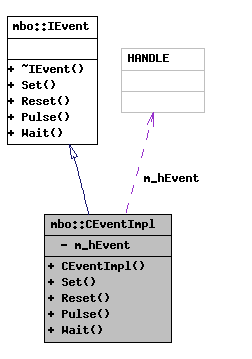

Collaboration diagram for mbo::CEventImpl:

[legend]

List of all members.

Public Member Functions
	CEventImpl (const bool bManualReset=true, const bool bInitialState=false)
virtual void	Set ()
virtual void	Reset ()
virtual void	Pulse ()
virtual bool	Wait (size_t nTime=INFINITE) const

---

Detailed Description

Event implementation.

Note:

This class is distributed under the following license GNU Lesser General Public License, version 2.1.

Definition at line 773 of file MboSynch.h.

---

Constructor & Destructor Documentation

mbo::CEventImpl::CEventImpl	(	const bool	bManualReset = true,
		const bool	bInitialState = false
	)			[explicit]

Default constructor.

When bManualReset is set true the state of the object is left signaled once it gets signaled until Reset() method is called. With automatical reset the event automatically switches from signaled to not signaled if a thread passes the event with Wait().

Parameters:

bManualReset	mode of the signal
bInitialState	state after create: true => go, false => stop

---

Member Function Documentation

virtual void mbo::CEventImpl::Set

(

)

[virtual]

Set the signal into the signaled state.

Implements mbo::IEvent.

virtual void mbo::CEventImpl::Reset

(

)

[virtual]

Set the signal into the not signaled state.

Implements mbo::IEvent.

virtual void mbo::CEventImpl::Pulse

(

)

[virtual]

Switch the signal to signaled and then

• If no thread waits: switch back to not signaled.
• If threads are waiting: In automatic reset mode only one thread can pass the Wait(). After this one thread the signal is switched back to not signaled. In manual reset mode all waiting threads pass Wait(). After all waiting threads have passed Wait(), the signal is switched back to not signaled.

Implements mbo::IEvent.

virtual bool mbo::CEventImpl::Wait

(

size_t

nTime = INFINITE

)

const [virtual]

Pulse (wait & reset) the event.

If the signal is in signaled state: passes the function will return. If the signal is in not signaled state: wait until time elaspes. In automatic reset mode: set signal to not signaled on leaving the method.

Parameters:

nTime

time to wait in milliseconds.

Returns:

The return value is true if Wait() exits because of signaled state reached. When false is returned the time nTime (in ms) has elapsed before the signaled state has been reached.

Implements mbo::IEvent.

---

The documentation for this class was generated from the following file:

• MboSynch.h

---
